Metal cassette ceilings

Metal cassette ceiling in Yerevan

600×600 mm metal cassettes on a T24 grid — a ceiling that is moisture-proof, washable, non-combustible and never sags. Any cassette lifts out for access. The Line, K45 or K90 edge defines the joint.

Price: from AMD 5,000/m²
Edge: Line, K45, K90
Moisture resistance: 100%

Get a quote WhatsAppPrice: from AMD 5,000/m²

White 600×600 metal cassette ceiling with recessed lights

About the system

Lay-in cassettes simply sit in the cells of a T24 grid. Edges: Line — flush with the grid, K45 — 45° step, K90 — 90° step. A stepped edge drops the cassette below the grid for a deeper look.

Plain or perforated: Ø 1.8 mm perforation with acoustic fleece reduces echo in offices, schools and waiting areas. For a fully concealed grid choose Clip-in.

Fire rating: non-combustible, KM1.
100% moisture resistant.
Washable surface.
Only 0.97 kg/m².

Price — from AMD 5,000 per m².

Specifications

Material	aluminium 0.3–0.5 mm or galvanized steel 0.3–0.4 mm
Cassette thickness	0.32 mm (standard)
Size	600×600 mm
Edge	Line, K45, K90
Grid	exposed T24
Weight	0.97 kg/m²
Fire	non-combustible, KM1
Perforation	Ø 1.8 mm optional
Colours	matt white RAL 9003, silver metallic RAL 9006, matt metallic RAL 9006, graphite RAL 7024, black RAL 9005; any RAL to order

Consumption per 1 m²

Component	Consumption
Cassette 600×600	2.78 pcs
T24 3.6 m	0.84 lm
T24 1.2 m	1.67 lm
T24 0.6 m	0.84 lm
Hanger	0.7 pcs
Edge angle PL / PLL	perimeter

Add 5%.

Packing

Cassette	Pcs per pack	Pcs per block	Pack weight, kg
Line	36	864	11.2
K45	40	1,200	12.5
K90	40	1,200	12.5

T24 grid: layout 1

Main tees 3.6 m at 1200 mm, 1.2 m cross tees at 600 mm, 0.6 m cross tees in the middle — 600×600 cells

Edges and perforation

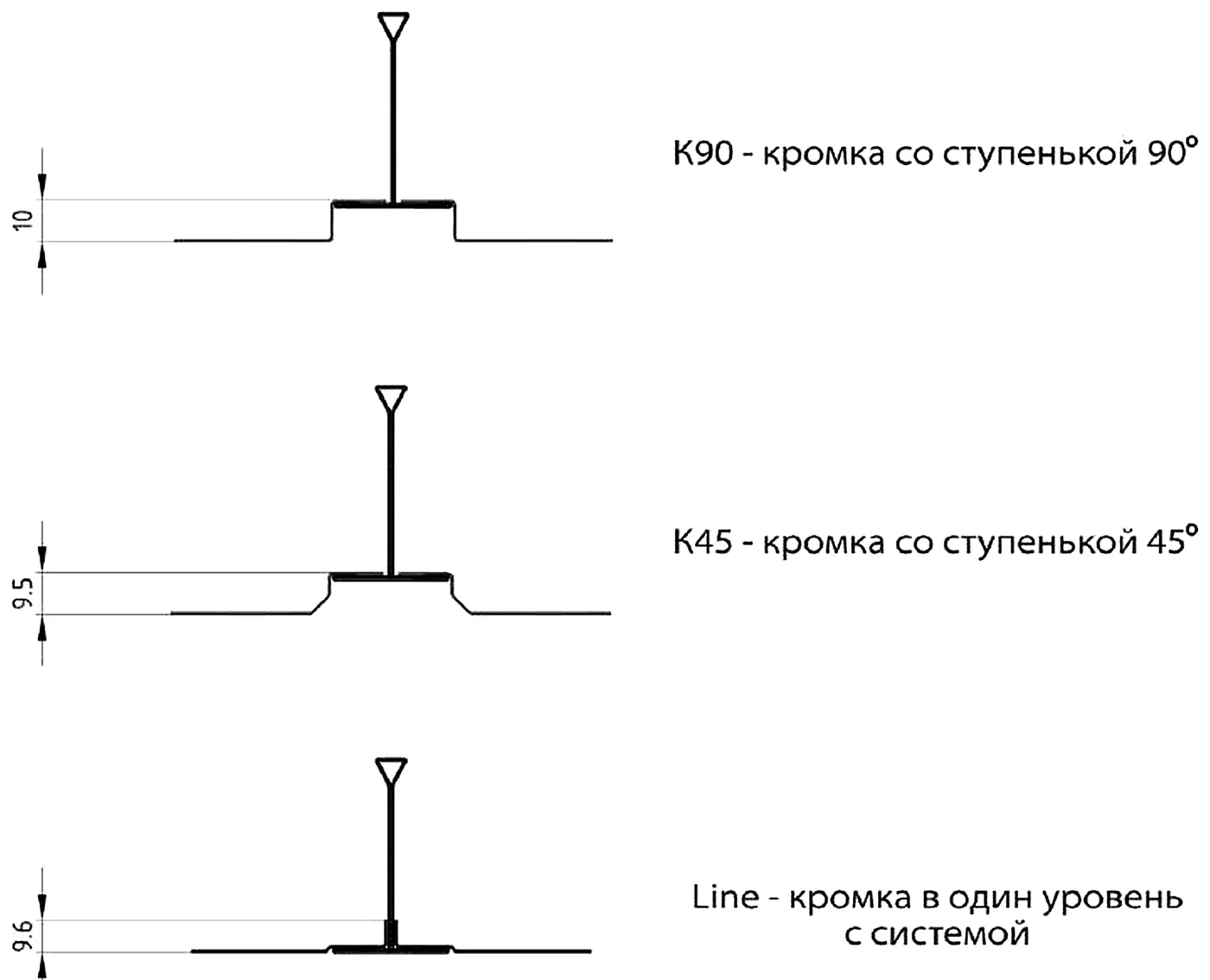

Metal cassette edge types K90, K45, Line — K90 — 90° step, K45 — 45° step, Line — flush

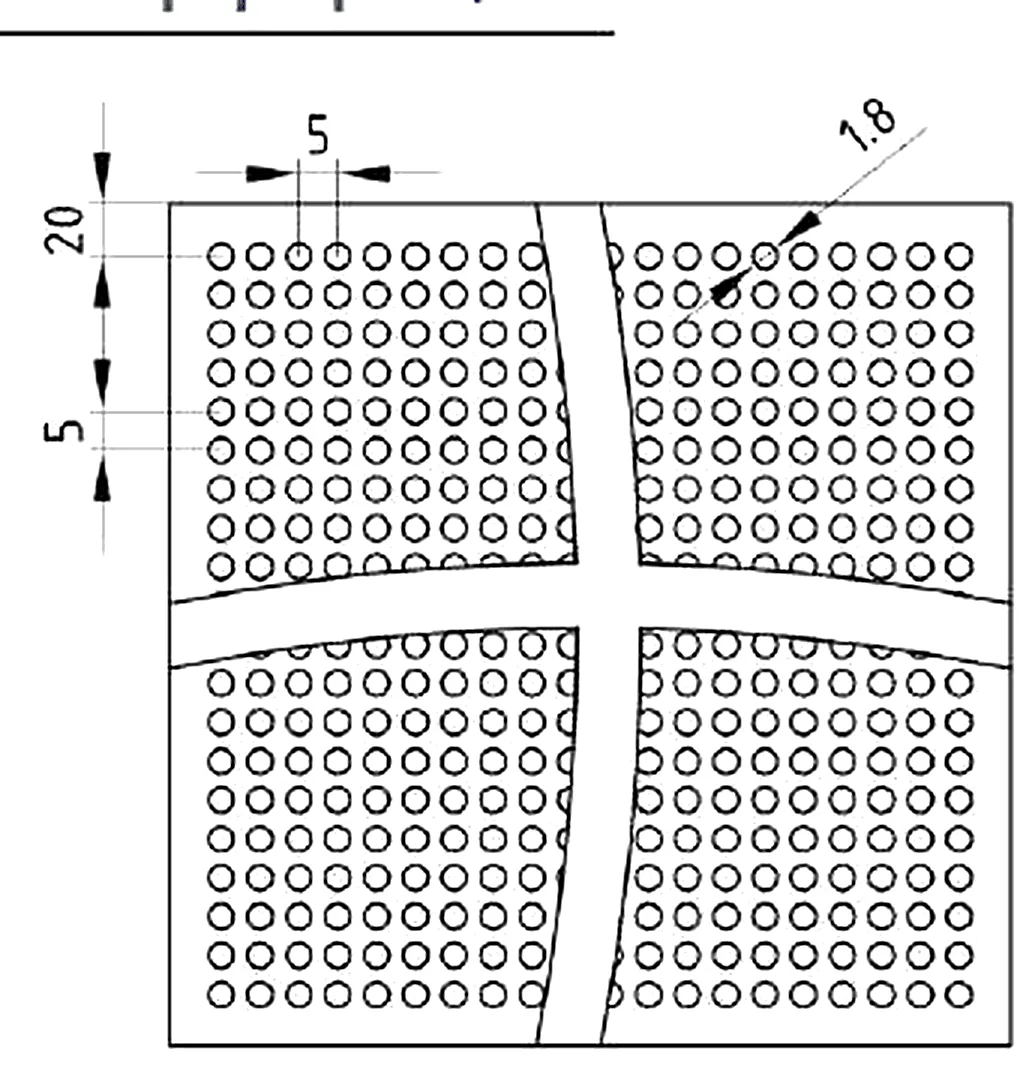

Cassette perforation 1.8 mm — Perforation Ø 1.8 mm

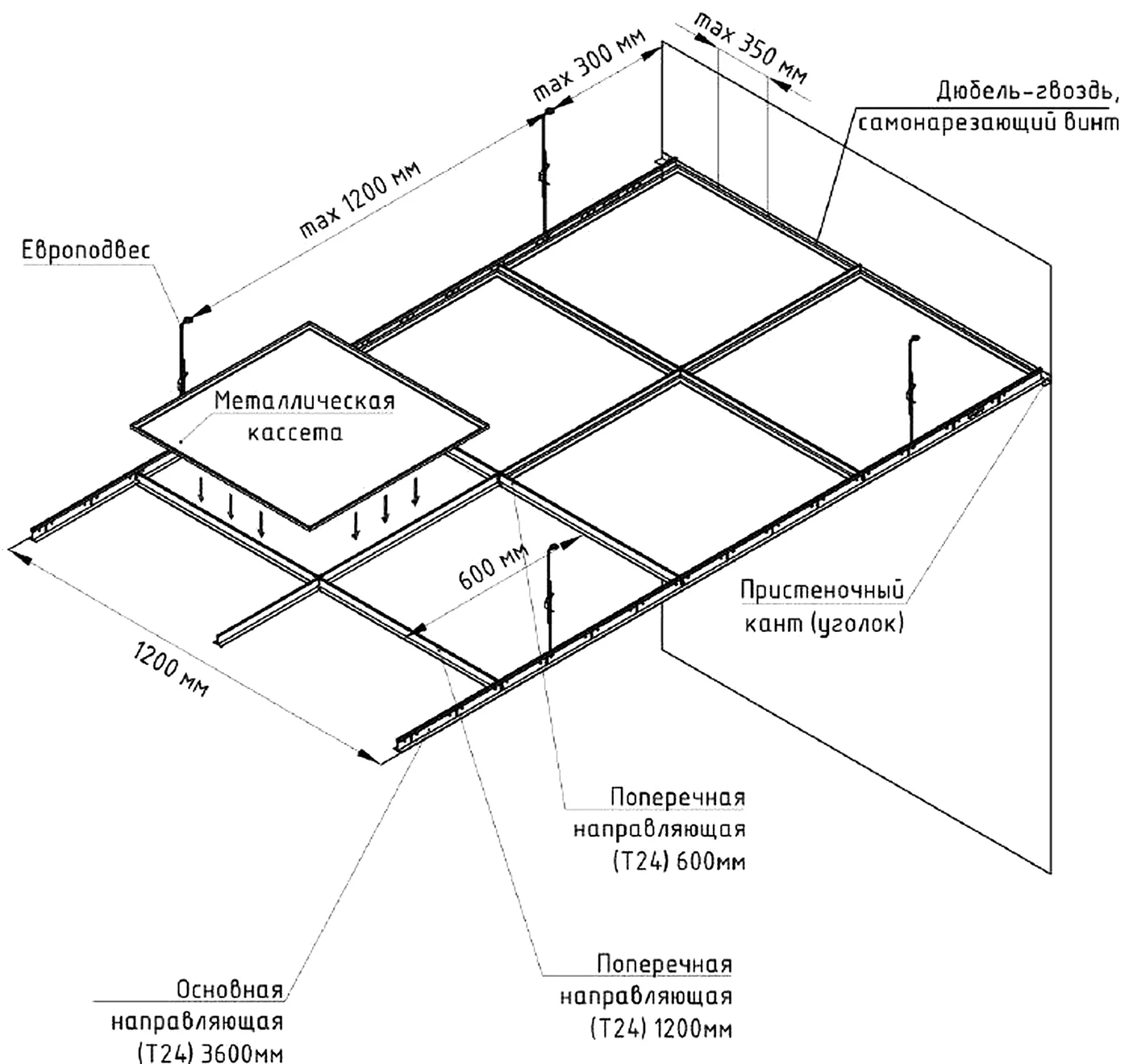

Installation

Prepare the ceiling void: fix all services so that nothing rests on the suspended ceiling grid.
Draw a room plan and a ceiling layout before installation so that the ceiling is symmetrical to the walls and the cut modules at the edges are equal.
Mark a level line around the perimeter (height as per design) and fix the wall angle at max 350 mm centres. The angle level sets the ceiling height. Mitre the angle at 45° in corners; on straight runs butt-joint it and fix each end. Cut with metal snips. Also fix the angle to columns and other elements the ceiling abuts.
Install the T24 grid: mains on hangers at max 1200 mm (first max 300 mm from the wall), cross tees 1.2 and 0.6 m.
Level the grid to the wall angle.
Lay the cassettes wearing gloves; cut edge cassettes with metal snips.

ImportantLight fittings, sensors, AC cassettes and any other equipment visible on the ceiling face must hang from their own hangers. Never load the grid or fix to ducts and other services.
